Anatomy of a Bottle: Neck Finish

Part 2 in our Anatomy of a Bottle Series is focused on neck finish: the part of the container that secures the closure. A container and its corresponding cap must have matching finishes. For example, a 20-400 bottle will only accept a 20-400 closure.

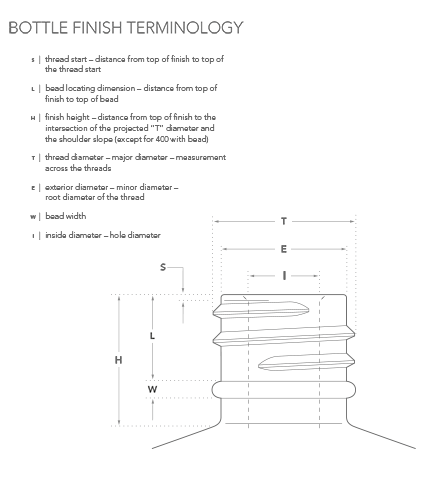

Take a look at the image below to match the definitions with the terms.

S - Thread Start

The distance from the top of the finish to the top of the thread start

L - Bead Locating Dimension

The distance from the top of the finish to the top of the bead

H - Finish height

The distance from the top of the finish to the intersection of the projected "T" diameter and the shoulder slope

T - Thread Diameter

Major diameter - outside measurement across threads

E - Exterior Diameter

Minor diameter - measurement across the threads

W - Bead Width

Width of the neck bead

I - Inside Diameter

Inner diameter of the bottle neck
